TSSC-J03(单/双端面集装式密封件 替换克兰 5611 )
TSSC-J03 技术参数 : 压力：2.8MPa 速率：25m/s 温度:-30℃～+205℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙烯) 其它部...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
|

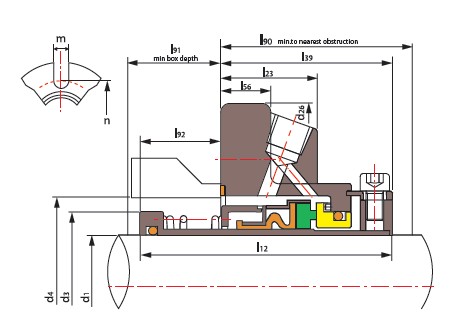

d1 |
d3 |
d4 |
d26 |
l12 |
l13 |
l23 |
l39 |
l90 |
l91 |
l92 |
m |
n |
|
|
min |
max |
||||||||||||
|
25 |
34.9 |
38.1 |
48.0 |
101.6 |
69.6 |
34.4 |
49.6 |
13.5 |
50.8 |
23.1 |
20.0 |
13.3 |
71.2 |
|
28 |
38.1 |
41.3 |
51.2 |
104.8 |
65.9 |
36.7 |
52.4 |
13.5 |
54.0 |
16.7 |
13.5 |
13.3 |
74.5 |
|
30 |
42.8 |
46.0 |
56.5 |
108.0 |
69.0 |
36.7 |
52.4 |
13.5 |
54.0 |
19.8 |
16.7 |
13.3 |
81.6 |
|
32 |
42.8 |
46.0 |
58.3 |
108.0 |
69.0 |
36.7 |
52.4 |
13.5 |
54,0 |
19.8 |
16.7 |
13.3 |
81.6 |
|
33 |
46.0 |
49.2 |
61.5 |
111.1 |
66.7 |
36.7 |
52.4 |
13.5 |
54.0 |
17.5 |
14.3 |
13.3 |
84.8 |
|
35 |
46.0 |
49.2 |
61.5 |
111.1 |
66.7 |
36.7 |
52.4 |
13.5 |
54.0 |
17.5 |
14.3 |
13.3 |
84.8 |
|
38 |
50.8 |
54.0 |
68.1 |
123.8 |
75.2 |
37.8 |
54.0 |
15.1 |
55.6 |
24.4 |
21.2 |
13.3 |
91.4 |
|
40 |
54.0 |
57.2 |
71.4 |
127.0 |
76.8 |
37.8 |
54.0 |
15.1 |
55.6 |
26.0 |
22.8 |
14.3 |
95.7 |
|
43 |
57.2 |
60.3 |
74.1 |
133.4 |
77.2 |
37.8 |
54.0 |
15.1 |
55.6 |
26.4 |
23.2 |
14.3 |
98.4 |
|
45 |
57.2 |
60.3 |
74.1 |
133.4 |
77.2 |
37.8 |
54.0 |
15.1 |
55.6 |
26.4 |
23.2 |
14.3 |
98.4 |
|
48 |
60.3 |
63.5 |
74.1 |
133.4 |
77.2 |
37.8 |
54.0 |
15.1 |
55.6 |
26.4 |
23.2 |
14.3 |
98.4 |
|
50 |
68.2 |
69.9 |
76.6 |
139.7 |
87.7 |
40.7 |
58.7 |
27.0 |
60.3 |
32.2 |
29.0 |
14.3 |
101.6 |
|
53 |
71.4 |
73.0 |
85.3 |
148.8 |
87.7 |
40.7 |
58.7 |
15.1 |
60.3 |
32.2 |
29.0 |
17.4 |
113.5 |
|
55 |
69.9 |
7B.0 |
85.3 |
148.8 |
90.9 |
40.7 |
58.7 |
15.1 |
60.3 |
35.4 |
32.2 |
17.4 |
113.5 |
|
58 |
69.9 |
75.0 |
88.5 |
165.1 |
90.9 |
40.7 |
58.7 |
15.1 |
60.3 |
35.4 |
32.2 |
17.4 |
116.0 |
|
60 |
77.8 |
79.4 |
91.7 |
165.1 |
88.1 |
43.6 |
62.6 |
15.9 |
64.2 |
28.6 |
25.5 |
17.4 |
119.9 |
|
63 |
82.6 |
85.7 |
98.8 |
171.5 |
97.3 |
43.6 |
65.1 |
15.9 |
66.7 |
35.4 |
32.2 |
17.4 |
127.0 |
|
65 |
82.6 |
85.7 |
98.8 |
171.5 |
97.3 |
43.6 |
65.1 |
15.9 |
66.7 |
35.4 |
32.2 |
17.4 |
127.0 |
|
68 |
88.9 |
92.1 |
103.2 |
171.5 |
101.0 |
41.2 |
63.5 |
15.9 |
65.1 |
40.7 |
37.5 |
17.4 |
131.3 |
|
70 |
88.9 |
92.1 |
103.2 |
171.5 |
101.0 |
41.2 |
63.5 |
17.4 |
65.1 |
40.7 |
37.5 |
17.4 |
131.3 |
|
75 |
100.0 |
101.6 |
113.5 |
196.9 |
106.0 |
45.4 |
65.1 |
\ |
66.7 |
44.1 |
40.9 |
20.6 |
145.3 |
|
80 |
103.2 |
104.8 |
116.8 |
188.9 |
106.4 |
40.5 |
63.8 |
\ |
66.9 |
45.8 |
42.6 |
20.6 |
148.5 |
|
85 |
109.5 |
111.1 |
123.2 |
206.4 |
111.1 |
40.5 |
65.1 |
\ |
68.3 |
49.2 |
46.1 |
20.6 |
154.8 |
|
90 |
115.9 |
117.5 |
129.5 |
212.7 |
117.5 |
40.5 |
65.1 |
\ |
68.3 |
55.6 |
52.4 |
17.4 |
158.8 |
|
95 |
117.7 |
120.0 |
132.1 |
222.3 |
112.7 |
40.5 |
65.1 |
\ |
68.3 |
50.8 |
47.6 |
17.4 |
172.0 |
|
100 |
125.4 |
127.8 |
139.7 |
228.6 |
122.2 |
40.5 |
65.1 |
\ |
68,3 |
60.3 |
57.2 |
20,6 |
171,7 |
|
125 |
165.1 |
167.5 |
184.4 |
304.8 |
146.0 |
41.4 |
77.3 |
\ |
80.5 |
71.9 |
68.8 |
20.6 |
254.0 |
