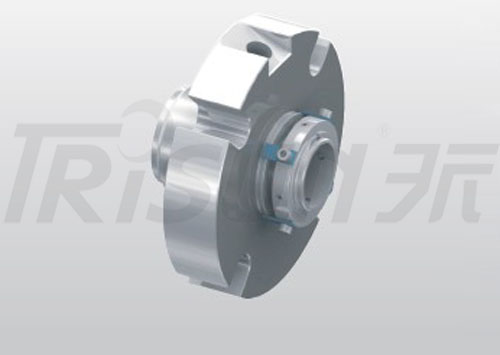

TSSC-B05 单/双端面集装式密封件
TSSC-B05 技术参数 ： 压力：2.5MPa 速率：16m/s 温度：-40℃ ～220 ...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
|

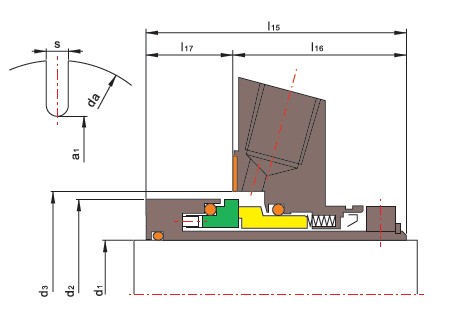

d1 |
d2 |
d3 |
l15 |
l16 |
l17 |
a1 |
da |
S |
|
|
min |
max |
||||||||
|
25.0 |
43.0 |
44.0 |
51.5 |
79.5 |
53.4 |
26.1 |
62.0 |
105.0 |
13.2 |
|
28.0 |
46.0 |
47.0 |
52.0 |
79.5 |
53.4 |
26.1 |
62.0 |
105.0 |
13.2 |
|
30.0 |
48.0 |
49.0 |
56.0 |
79.5 |
53.4 |
26.1 |
65.0 |
105.0 |
13.2 |
|
32.0 |
49.8 |
51.0 |
57.0 |
79.5 |
53.4 |
26.1 |
67.0 |
108.0 |
13.2 |
|
33.0 |
49.8 |
51.0 |
57.0 |
79.5 |
53.4 |
26.1 |
67.0 |
108.0 |
13.2 |
|
35.0 |
53.0 |
54.0 |
61.5 |
79.5 |
53.4 |
26.1 |
70.0 |
113.0 |
13.2 |
|
38.0 |
56.0 |
57.0 |
66.0 |
79.5 |
53.4 |
26.1 |
75.0 |
123.0 |
13.2 |
|
40.0 |
58.0 |
59.0 |
68.0 |
79.5 |
53.4 |
26.1 |
75.0 |
123.0 |
14.2 |
|
42.0 |
60.5 |
61.5 |
69.5 |
79.5 |
53.4 |
26.1 |
80.0 |
133.0 |
14.2 |
|
43.0 |
60.5 |
61.5 |
70.5 |
79.5 |
53.4 |
26.1 |
80.0 |
133.0 |
14.2 |
|
45.0 |
62.5 |
64.0 |
73.0 |
79.5 |
53.4 |
26.1 |
81.0 |
138.0 |
14.2 |
|
48.0 |
65.6 |
67.0 |
75.0 |
79.5 |
53.4 |
26.1 |
84.0 |
138.0 |
14.2 |
|
50.0 |
68.0 |
69.0 |
78.0 |
79.5 |
53.4 |
26.1 |
87.0 |
148.0 |
14.2 |
|
53.0 |
72.0 |
73.0 |
87.0 |
79.5 |
53.4 |
26.1 |
97.0 |
148.0 |
18.0 |
|
55.0 |
73.0 |
74.0 |
83.0 |
79.5 |
53.4 |
26.1 |
90.0 |
148.0 |
18.0 |
|
60.0 |
78.0 |
79.0 |
91.0 |
79.5 |
53.4 |
26.1 |
102.0 |
157.0 |
18.0 |
|
65.0 |
84.8 |
85.7 |
98.5 |
79.5 |
53.4 |
26.1 |
109.0 |
163.0 |
18.0 |
|
70.0 |
93.0 |
95.0 |
108.0 |
79.5 |
53.4 |
26.1 |
118.0 |
178.0 |
18.0 |
|
d1 |
d2 |
d3 |
l15 |
l16 |
l17 |
a1 |
da |
S |
|
|
min |
max |
||||||||
|
1.000 |
1.693 |
1.750 |
2.000 |
3.130 |
2.102 |
1.028 |
2.440 |
4.134 |
0.520 |
|
1.125 |
1.811 |
1.875 |
2.050 |
3.130 |
2.102 |
1.028 |
2.440 |
4.134 |
0.520 |
|
1.250 |
1.960 |
2.000 |
2.250 |
3.130 |
2.102 |
1.028 |
2.640 |
4.330 |
0.520 |
|
1.375 |
2.086 |
2.125 |
2.420 |
3.130 |
2,102 |
1.028 |
2.750 |
4.449 |
0.520 |
|
1.500 |
2.200 |
2.250 |
2.625 |
3.130 |
2.102 |
1.028 |
2.950 |
4.842 |
0.520 |
|
1.625 |
2.340 |
2.375 |
2.700 |
3.130 |
2.102 |
1.028 |
3.030 |
4.842 |
0.599 |
|
1.750 |
2.460 |
2.500 |
2.812 |
3.130 |
2.102 |
1.028 |
3.190 |
5.433 |
0.599 |
|
1.875 |
2.582 |
2.625 |
2.940 |
3.130 |
2.102 |
1.028 |
3.190 |
5.433 |
0.599 |
|
2.000 |
2.677 |
2.750 |
3.190 |
3.130 |
2.102 |
1.028 |
3.430 |
5.827 |
0.599 |
|
2.125 |
2.834 |
2.875 |
3.437 |
3.130 |
2.102 |
1.028 |
3.820 |
5.827 |
0.709 |
|
2.250 |
2.960 |
3.000 |
3.560 |
3.130 |
2.102 |
1.028 |
3.940 |
6.181 |
0.709 |
|
2.375 |
3.070 |
3.125 |
3.590 |
3.130 |
2.102 |
1.028 |
4.020 |
6.181 |
0.709 |
|
2.500 |
3.212 |
3.250 |
3.800 |
3.130 |
2.102 |
1.028 |
4.170 |
6.417 |
0.709 |
|
2.625 |
3.338 |
3.375 |
3.937 |
3.130 |
2.102 |
1.028 |
4.290 |
6.417 |
0.709 |
|
2.750 |
3.660 |
3.750 |
4.250 |
3.130 |
2.102 |
1.028 |
4.650 |
7.008 |
0.709 |
