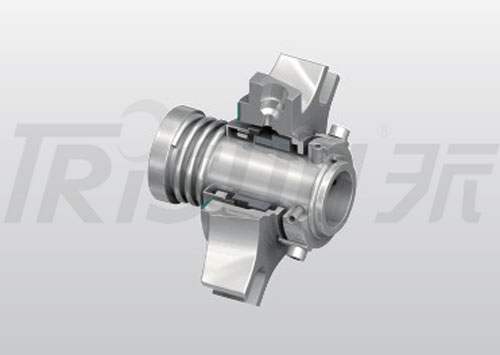

TSSC-B02(单/双端面集装式密封件 替换伯格曼 UNITEX )
TSSC-B02 技术参数 : 压力：1.2MPa 速率：10m/s 温度:-20℃～+90℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/陶瓷/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙烯/丁腈...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
|

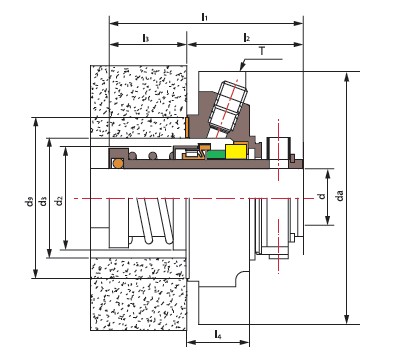

d |
d2 |
d3 |
d9 |
da |
l1 |
l2 |
l3 |
l4 |
T |
|
|
min |
max |
|||||||||
|
1.000 |
1.512 |
1.634 |
2.000 |
2.362 |
4.134 |
2.579 |
1.614 |
0.965 |
0.906 |
1/4NPT |
|
1.125 |
1.669 |
1.750 |
2.050 |
2.362 |
4.134 |
2.677 |
1.634 |
1.043 |
0.906 |
1/4NPT |
|
1.250 |
1.772 |
1.890 |
2.250 |
2.559 |
4.331 |
2.736 |
1.654 |
1.083 |
0.906 |
1/4NPT |
|
1.375 |
1.933 |
2.000 |
2.420 |
2.677 |
4.213 |
2.854 |
1.732 |
1.122 |
1.024 |
1/4NPT |
|
1.500 |
2.020 |
2.146 |
2.625 |
2.874 |
4.843 |
2.854 |
1.732 |
1.122 |
1.024 |
1/4NPT |
|
1.750 |
2.354 |
2.480 |
2.812 |
3.110 |
5.118 |
3.012 |
1.752 |
1.260 |
1.024 |
1/4NPT |
|
1.875 |
2.433 |
2.559 |
2.940 |
3.228 |
5.118 |
3.071 |
1.772 |
1.299 |
1.024 |
1/4NPT |
|
2.000 |
2.551 |
2.677 |
3.190 |
3.346 |
5.827 |
3.169 |
1.850 |
1.319 |
1.102 |
3/8NPT |
|
2.125 |
2.795 |
2.875 |
3.437 |
3.740 |
5.512 |
3.287 |
1.850 |
1.437 |
1.102 |
3/8NPT |
|
2.250 |
2.874 |
2.992 |
3.560 |
3.780 |
6.181 |
3.287 |
1.850 |
1.437 |
1.102 |
3/8NPT |
|
2.375 |
3.012 |
3.110 |
3.590 |
3.937 |
6.181 |
3.366 |
1.850 |
1.516 |
1.102 |
3/8NPT |
|
2.500 |
3.209 |
3.287 |
3.800 |
4.173 |
6.693 |
3.465 |
1.909 |
1.555 |
1.102 |
3/8NPT |
|
2.625 |
3.268 |
3.374 |
3.937 |
4.252 |
6.378 |
3.465 |
1.909 |
1.555 |
1.102 |
3/8NPT |
|
d |
d2 |
d3 |
d9 |
da |
l1 |
l2 |
l3 |
l4 |
T |
|
|
min |
max |
|||||||||
|
25 |
38.4 |
41.5 |
51.0 |
60 |
105 |
65.5 |
41.0 |
24.5 |
23 |
1/4NPT |
|
28 |
42.4 |
44.5 |
52.0 |
60 |
105 |
68.0 |
41.5 |
26.5 |
23 |
1/4NPT |
|
30 |
42.4 |
45.5 |
56.0 |
63 |
105 |
68.0 |
41.5 |
26.5 |
23 |
1/4NPT |
|
33 |
45.0 |
48.0 |
57.0 |
65 |
no |
69.5 |
42.0 |
27.5 |
23 |
1/4NPT |
|
35 |
49.1 |
50.8 |
61.5 |
68 |
107 |
72.5 |
44.0 |
28.5 |
26 |
1/4NPT |
|
38 |
51.3 |
54.5 |
66.0 |
73 |
123 |
72.5 |
44.0 |
28.5 |
26 |
1/4NPT |
|
40 |
54.3 |
57.5 |
68.0 |
75 |
123 |
75.5 |
44.5 |
31.0 |
26 |
1/4NPT |
|
43 |
56.3 |
59,5 |
70.5 |
78 |
133 |
76.5 |
44.5 |
32.0 |
26 |
1/4NPT |
|
45 |
59.8 |
63.0 |
73.0 |
79 |
130 |
76.5 |
44.5 |
32.0 |
26 |
1/4NPT |
|
48 |
61.8 |
65.0 |
75.0 |
82 |
130 |
78.0 |
45.0 |
33.0 |
26 |
1/4NPT |
|
50 |
64.8 |
68.0 |
78.0 |
85 |
148 |
80.5 |
47.0 |
33.5 |
28 |
3/8NPT |
|
53 |
66.8 |
70.0 |
87.0 |
95 |
148 |
81.5 |
47.0 |
34.5 |
28 |
3/8NPT |
|
55 |
71.0 |
73.0 |
83.0 |
90 |
148 |
83.5 |
47,0 |
36.5 |
28 |
3/8NPT |
|
60 |
76.5 |
79.0 |
91.0 |
100 |
157 |
85.5 |
47.0 |
38.5 |
28 |
3/8NPT |
|
65 |
83.0 |
85.7 |
98.5 |
108 |
162 |
88.0 |
48.5 |
39,5 |
28 |
3/8NPT |
|
70 |
88.0 |
94.0 |
108.0 |
116 |
178 |
92.0 |
48.5 |
43.5 |
28 |
3/8NPT |
|
75 |
93.4 |
98.4 |
118.0 |
125 |
190 |
93.5 |
49.0 |
44.5 |
28 |
3/8NPT |
