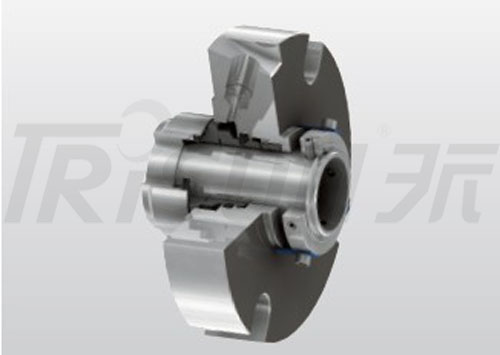

TSSC-B03(单/双端面集装式密封件 替换伯格曼 CARTEX )
TSSC-B03 技术参数 ： 压力：2.5MPa 速率：16m/s 温度：-40℃～+220℃ 动环(碳化硅/碳化钨） 静环(碳化硅/碳化钨/石墨） 辅助密封(氟胶/包覆圈/聚四氟乙烯/丁腈...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
|

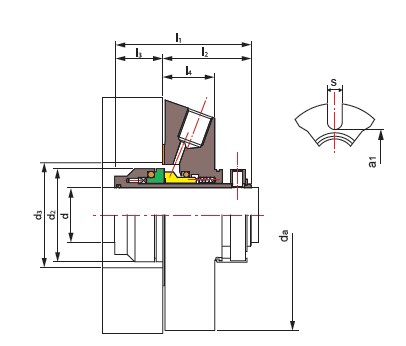

d |
