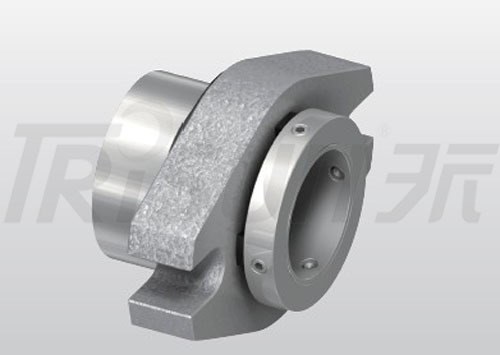

TSSC-A01(单/双端面集装式密封件 替换 AESSEAL ACONII )
TSSC-A01 技术参数： 压力：2.5MPa 速率：16m/s 温度： +200℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙烯) 其它部件(不...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数：
压力：≤2.5MPa
速率：≤16m/s
温度： +200℃
动环(碳化硅/石墨/碳化钨）
静环(碳化硅/碳化钨）
辅助密封(氟胶/包覆圈/聚四氟乙烯)
其它部件(不锈钢/钛材/哈氏-C)
|
d |
d26 |
l5 |
l3 |
l4 |
d1 |
n |
m |
l1 |
l2 |
||
|
min |
max |
min |
max |
||||||||
|
1.000 |
4.000 |
2.187 |
0.812 |
2.208 |
1.625 |
1.875 |
2.750 |
3.500 |
1/2 |
1.125 |
1.250 |
|
1.125 |
4.125 |
2.312 |
0.812 |
2.333 |
1.750 |
2.000 |
2.875 |
3.625 |
1/2 |
1.125 |
1.250 |
|
1.250 |
4.250 |
2.437 |
0.812 |
2.458 |
1.875 |
2.125 |
3.000 |
3.750 |
1/2 |
1.125 |
1.250 |
|
1.375 |
4.250 |
2.625 |
0.812 |
2.645 |
2.000 |
2.250 |
3.187 |
3.750 |
1/2 |
1.125 |
1.250 |
|
1.500 |
4.500 |
2.812 |
0.875 |
2.833 |
2.250 |
2.500 |
3.375 |
4.000 |
1/2 |
1.125 |
1.312 |
|
1.625 |
4.750 |
2.937 |
0.875 |
2.958 |
2.375 |
2.625 |
3.500 |
4.250 |
1/2 |
1.125 |
1.312 |
|
1.750 |
5.000 |
3.062 |
0.937 |
3.083 |
2.500 |
2.750 |
3.625 |
4.500 |
1/2 |
1.187 |
1.375 |
|
1.875 |
5.250 |
3.187 |
0.937 |
3.207 |
2.625 |
2.875 |
3.750 |
4.750 |
1/2 |
1.187 |
1.375 |
|
2.000 |
5.500 |
3.312 |
1.000 |
3.333 |
2.750 |
3.000 |
4.000 |
4.875 |
5/8 |
1.187 |
1.437 |
|
2.125 |
5.750 |
3.437 |
1.000 |
3.458 |
2.875 |
3.125 |
4.125 |
5.125 |
5/8 |
1.187 |
1.437 |
|
2.250 |
6.500 |
3.750 |
1.000 |
3.895 |
3.000 |
3.375 |
4.562 |
5.750 |
3/4 |
1.187 |
1.437 |
|
2.375 |
6.500 |
3.750 |
1.000 |
3.895 |
3.125 |
3.375 |
4.562 |
5.750 |
3/4 |
1.187 |
1.437 |
|
2.500 |
7.000 |
4.375 |
1.000 |
4.770 |
3.375 |
4.000 |
5.187 |
6.250 |
3/4 |
1.125 |
1.625 |
|
2.625 |
7.000 |
4.375 |
1.000 |
4.770 |
3.500 |
4.000 |
5.187 |
6.250 |
3/4 |
1.125 |
1.625 |
|
2.750 |
7.000 |
4.375 |
1.000 |
4.770 |
3.625 |
4.000 |
5.187 |
6.250 |
3/4 |
1.125 |
1.625 |
|
2.875 |
7.500 |
4.937 |
1.250 |
5.145 |
3.750 |
4.500 |
5.750 |
6.750 |
3/4 |
1.187 |
2.000 |
|
3.000 |
7.500 |
4.937 |
1.250 |
5.145 |
3.875 |
4.500 |
5.750 |
6.750 |
3/4 |
1.187 |
2.000 |
|
3.125 |
7.500 |
4.937 |
1.250 |
5.145 |
4.000 |
4.500 |
5.750 |
6.750 |
3/4 |
1.187 |
2.000 |
|
3.250 |
8.000 |
5.312 |
1.250 |
5.520 |
4.125 |
4.875 |
6.125 |
7.250 |
3/4 |
1.187 |
2.000 |
|
3.375 |
8.000 |
5.312 |
1.250 |
5.520 |
4.250 |
4.875 |
6.125 |
7.250 |
3/4 |
1.187 |
2.000 |
|
3.500 |
8.000 |
5.312 |
1.250 |
5.520 |
4.375 |
4.875 |
6.125 |
7.250 |
3/4 |
1.187 |
2.000 |
|
3.625 |
8.500 |
5.687 |
1.250 |
5.895 |
4.500 |
5.250 |
6.500 |
7.750 |
3/4 |
1.187 |
2.000 |
|
3.750 |
8.500 |
5.687 |
1.250 |
5.895 |
4.625 |
5.250 |
6.500 |
7.750 |
3/4 |
1.187 |
2.000 |
|
3.875 |
8.500 |
5.687 |
1.250 |
5.895 |
4.750 |
5.250 |
6.500 |
7.750 |
3/4 |
1.187 |
2.000 |
|
4.000 |
9.000 |
6.062 |
1.250 |
6.145 |
4.875 |
5.500 |
6.875 |
8.250 |
3/4 |
1.187 |
2.000 |
|
d |
d26 |
l5 |
l3 |
l4 |
d1 |
n |
m |
l1 |
l2 |
||
|
min |
max |
min |
max |
||||||||
|
24 |
101.6 |
55.6 |
20.7 |
56.1 |
40.0 |
48.0 |
69.9 |
88.9 |
12 |
28.6 |
31.8 |
|
25 |
101.6 |
55.6 |
20.7 |
56.1 |
41.0 |
48.0 |
69.9 |
88.9 |
12 |
28.6 |
31.8 |
|
28 |
104.8 |
58.8 |
20.7 |
59.3 |
44.0 |
50.0 |
73.1 |
92.1 |
12 |
28.6 |
31.8 |
|
30 |
108.0 |
61.9 |
20.7 |
62.4 |
46.0 |
54.0 |
76.2 |
95.3 |
12 |
28.6 |
31.8 |
|
32 |
108.0 |
61.9 |
20.7 |
62.4 |
48.0 |
54.0 |
76.2 |
95.3 |
12 |
28.6 |
31.8 |
|
33 |
108.0 |
61.9 |
20.7 |
62.4 |
49.0 |
55.0 |
76.2 |
95.3 |
12 |
28.6 |
31.8 |
|
35 |
108.0 |
66.7 |
20.7 |
67.2 |
51.0 |
59.0 |
81.0 |
95.3 |
12 |
28.6 |
31.8 |
|
38 |
114.3 |
71.5 |
22.3 |
72.0 |
57.2 |
62.0 |
85.8 |
101.6 |
12 |
28.6 |
33.4 |
|
40 |
114.3 |
71.5 |
22.3 |
72.0 |
58.0 |
64.0 |
85.8 |
101.6 |
12 |
28.6 |
33.4 |
|
43 |
120.7 |
74.6 |
22.3 |
75.1 |
61,0 |
67.0 |
88.9 |
108.0 |
12 |
28.6 |
33.4 |
|
45 |
127.0 |
77.8 |
23.8 |
78.3 |
63.5 |
69.0 |
92.1 |
114.3 |
12 |
30.2 |
35.0 |
|
48 |
133.4 |
81.0 |
23.8 |
81.5 |
66.7 |
72.0 |
95.3 |
120.7 |
12 |
30.2 |
35.0 |
|
50 |
133.4 |
81.0 |
23.8 |
81.5 |
68.0 |
74.0 |
95.3 |
120.7 |
12 |
30.2 |
35.0 |
|
53 |
139.7 |
84.2 |
25.4 |
84.7 |
71.0 |
77.0 |
101.6 |
123.9 |
16 |
30.2 |
36.5 |
|
55 |
146.1 |
87.3 |
25.4 |
87.8 |
74.0 |
79.0 |
104.8 |
130.2 |
16 |
30.2 |
36.5 |
|
58 |
165.1 |
95.3 |
25.4 |
98.9 |
79.4 |
85.7 |
115.9 |
146.0 |
20 |
30.2 |
36.5 |
|
60 |
165.1 |
95.3 |
25.4 |
98.9 |
79.4 |
85.7 |
115.9 |
146.0 |
20 |
30.2 |
36.5 |
|
63 |
177.8 |
111.2 |
25.4 |
121.2 |
85.8 |
101.6 |
131.8 |
158.7 |
20 |
28.6 |
41.2 |
|
65 |
177.8 |
111.2 |
25.4 |
121.2 |
88.9 |
101.6 |
131.8 |
158.7 |
20 |
28.6 |
41.2 |
|
68 |
177.8 |
111.2 |
25.4 |
121.2 |
92.1 |
101.6 |
131.8 |
158.7 |
20 |
28.6 |
41.2 |
|
70 |
177.8 |
111.2 |
25.4 |
121.2 |
92.1 |
101.6 |
131.8 |
158.7 |
20 |
28.6 |
41.2 |
|
75 |
190.5 |
125.4 |
31.7 |
130.7 |
98.5 |
114.3 |
146.1 |
171.4 |
20 |
30.2 |
50.8 |
|
80 |
190.5 |
125.4 |
31.7 |
130.7 |
101.6 |
114.3 |
146.1 |
171.4 |
20 |
30.2 |
50.8 |
|
85 |
203.2 |
135.0 |
31.7 |
140.2 |
108.0 |
123.8 |
155.6 |
184.1 |
20 |
30.2 |
50.8 |
|
90 |
215.9 |
144.5 |
31.7 |
149.7 |
114.3 |
133.3 |
165.1 |
196.8 |
20 |
30.2 |
50.8 |
|
95 |
215.9 |
144.5 |
31.7 |
149.7 |
117.5 |
133.3 |
165.1 |
196.8 |
20 |
30.2 |
50.8 |
|
100 |
228.6 |
154.0 |
31.7 |
156.1 |
123.9 |
139.7 |
174.7 |
209.5 |
20 |
30.2 |
50.8 |
