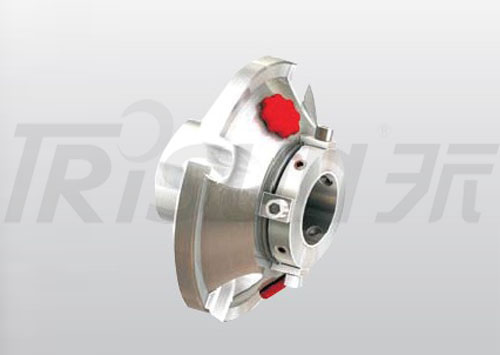

TSSC-A03 单/双端面集装式密封件
TSSC-A03 技术参数： 压力：2.3MPa 速率：16m/s 温度：-30℃～200℃ 动环(石墨/碳化硅/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(氟胶/三元乙丙胶/Kalrez) 弹簧及其...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数：
压力：≤2.3MPa
速率：≤16m/s
温度：-30℃～200℃
动环(石墨/碳化硅/碳化钨）
静环(碳化硅/碳化钨）
辅助密封(氟胶/三元乙丙胶/Kalrez)
弹簧及其它金属配件（不锈钢）
|

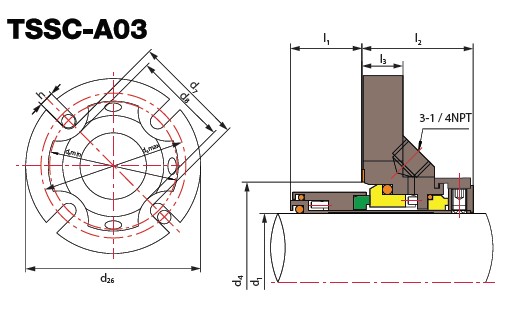

d1 |
d4 |
d6 |
d7 |
d8 |
d26 |
l1 |
l2 |
l3 |
h |
||
|
min |
max |
min |
max |
max |
|||||||
|
1.000 |
1.625 |
1.937 |
2.687 |
3.562 |
2.125 |
1.937 |
4.125 |
1.125 |
1.590 |
0.519 |
1/2 |
|
1.125 |
1.750 |
2.062 |
2.812 |
3.687 |
2.250 |
2.063 |
4.250 |
1.125 |
1.590 |
0.519 |
1/2 |
|
1.250 |
1.875 |
2.187 |
2.937 |
3.812 |
2.375 |
2.187 |
4.375 |
1.125 |
1.590 |
0.519 |
1/2 |
|
1.375 |
2.000 |
2.250 |
3.062 |
3.812 |
2.500 |
2.312 |
4.375 |
1.125 |
1.590 |
0.519 |
1/2 |
|
1.500 |
2.250 |
2.375 |
3.375 |
4.437 |
2.812 |
2.562 |
5.000 |
1.125 |
1.752 |
0.644 |
1/2 |
|
1.625 |
2.375 |
2.500 |
3.375 |
4.437 |
2.812 |
2.562 |
5.000 |
1.125 |
1.752 |
0.644 |
1/2 |
|
1.750 |
2.500 |
2.750 |
3.750 |
4.937 |
3.187 |
2.812 |
5.500 |
1.125 |
1.752 |
0.644 |
1/2 |
|
1.875 |
2.625 |
2.875 |
3.750 |
4.937 |
3.187 |
2.812 |
5.500 |
1.125 |
1.752 |
0.644 |
1/2 |
|
2.000 |
2.750 |
3.000 |
4.125 |
5.437 |
3.562 |
3.063 |
6.000 |
1.125 |
1.752 |
0.644 |
1/2 |
|
2.000-AC |
2.750 |
3.000 |
4.000 |
4.750 |
3.450 |
3.035 |
5.250 |
1.125 |
1.752 |
0.644 |
1/2 |
|
2.125 |
2.875 |
3.125 |
4.125 |
5.437 |
3.562 |
3.063 |
6.000 |
1.125 |
1.752 |
0.644 |
1/2 |
|
2.250 |
3.000 |
3.250 |
4.500 |
5.812 |
3.812 |
3.312 |
6.500 |
1.125 |
1.752 |
0.644 |
5/8 |
|
2.375 |
3.125 |
3.375 |
4.500 |
5.812 |
3.812 |
3.312 |
6.500 |
1.125 |
1.752 |
0.644 |
5/8 |
|
2.500 |
3.375 |
3.625 |
5.000 |
6.312 |
4.312 |
3.812 |
7.000 |
1.250 |
1.877 |
0.769 |
5/8 |
|
2.625 |
3.500 |
3.750 |
5.000 |
6.312 |
4.312 |
3.812 |
7.000 |
1.250 |
1.877 |
0.769 |
5/8 |
|
2.750 |
3.625 |
3.875 |
5.000 |
6.312 |
4.312 |
3.812 |
7.000 |
1.250 |
1.877 |
0.769 |
5/8 |
|
2.875 |
3.750 |
4.125 |
5.625 |
6.812 |
4.937 |
4.250 |
7.500 |
1.250 |
1.877 |
0.769 |
5/8 |
|
3,000 |
3.875 |
4.250 |
5.625 |
6.812 |
4.937 |
4.250 |
7.500 |
1.250 |
1.877 |
0.769 |
5/8 |
|
3,125 |
4.000 |
4.375 |
5.625 |
6.812 |
4.937 |
4.250 |
7.500 |
1.250 |
1.877 |
0.769 |
5/8 |
|
3.250 |
4.125 |
4.500 |
6.125 |
7.187 |
5.312 |
4.625 |
8.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
3.375 |
4.250 |
4.625 |
6.125 |
7.187 |
5.312 |
4.625 |
8.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
3.500 |
4.375 |
4.750 |
6.125 |
7.187 |
5.312 |
4.625 |
8.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
3.625 |
4.500 |
5.000 |
6.750 |
7.687 |
5.937 |
5.000 |
8.500 |
1.250 |
1.877 |
0.769 |
3/4 |
|
3.750 |
4.625 |
5.125 |
6.750 |
7.687 |
5.937 |
5.000 |
8.500 |
1.250 |
1.877 |
0.769 |
3/4 |
|
3.875 |
4.750 |
5.250 |
6.750 |
7.687 |
5.937 |
5.000 |
8.500 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.000 |
4.875 |
5.500 |
7.437 |
8.187 |
6.625 |
5.375 |
9.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.125 |
5.125 |
5.875 |
7.437 |
8.187 |
6.625 |
5.375 |
9.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.250 |
5.125 |
5.875 |
7.437 |
8.187 |
6.625 |
5.375 |
9.000 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.375 |
5.375 |
6.250 |
7.812 |
8.687 |
7.000 |
5.750 |
9.500 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.500 |
5.375 |
6.250 |
7.812 |
8.687 |
7.000 |
5.750 |
9.500 |
1.250 |
1.877 |
0.769 |
3/4 |
|
4.625 |
5.625 |
6.625 |
8.312 |
9.062 |
7.345 |
6.125 |
10.000 |
1.250 |
1.877 |
0.769 |
7/8 |
|
4.750 |
5.625 |
6.625 |
8.312 |
9.062 |
7.345 |
6.125 |
10.000 |
1.250 |
1.877 |
0.769 |
7/8 |
|
4.875 |
5.875 |
6.625 |
8.312 |
9.062 |
7.345 |
6.125 |
10.000 |
1.250 |
1.877 |
0.769 |
7/8 |
|
5.000 |
5.875 |
6.625 |
8.312 |
9.062 |
7.345 |
6.125 |
10.000 |
1.250 |
1.877 |
0.769 |
7/8 |
|
d1 |
d4 |
d6 |
d7 |
d8 |
d26 |
l1 |
l2 |
l3 |
h |
||
|
min |
max |
min |
max |
max |
|||||||
|
24 |
40.0 |
46.0 |
67.0 |
90.5 |
54.0 |
49.2 |
104.8 |
28.6 |
40.5 |
13.2 |
12 |
|
25 |
41.0 |
49.0 |
67.0 |
90.5 |
54,0 |
49.2 |
104.8 |
28.6 |
40.5 |
13.2 |
12 |
|
28 |
44.0 |
52.3 |
70.3 |
93.6 |
57.2 |
52.4 |
108.0 |
28.6 |
40.5 |
13.2 |
12 |
|
30 |
46.0 |
55.5 |
73.5 |
96.8 |
60.4 |
55.6 |
111.0 |
28.6 |
40.5 |
13.2 |
12 |
|
32 |
48.0 |
55.5 |
73.5 |
96.8 |
60.4 |
55.6 |
111.0 |
28.6 |
40.5 |
13.2 |
12 |
|
33 |
49.0 |
55.5 |
73.5 |
96.8 |
60.4 |
55.6 |
111.0 |
28.6 |
40.5 |
13.2 |
12 |
|
35 |
51.0 |
57.5 |
76.6 |
96.8 |
63.5 |
58.8 |
111.0 |
28.6 |
40.5 |
13.2 |
12 |
|
38 |
57.2 |
60.4 |
85.7 |
114.3 |
71.5 |
65.0 |
127.0 |
28.6 |
44.5 |
16.4 |
12 |
|
40 |
58.0 |
60.4 |
85.7 |
114.3 |
71.5 |
65.0 |
127.0 |
28.6 |
44.5 |
16.4 |
12 |
|
43 |
61.0 |
69.9 |
95.3 |
127.0 |
81.0 |
71.4 |
139.7 |
28.6 |
44.5 |
16.4 |
12 |
|
45 |
63.5 |
69.9 |
95.3 |
127.0 |
81.0 |
71.4 |
139.7 |
28.6 |
44.5 |
16.4 |
12 |
|
48 |
66.7 |
73.0 |
95.3 |
127.0 |
81.0 |
71.4 |
139.7 |
28.6 |
44.5 |
16.4 |
12 |
|
50 |
68.0 |
76.2 |
104.8 |
139.7 |
90.5 |
77.8 |
152.4 |
28.6 |
44.5 |
16.4 |
12 |
|
53 |
71.0 |
76.2 |
104.8 |
139.7 |
90.5 |
77.8 |
152.4 |
28.6 |
44.5 |
16.4 |
12 |
|
55 |
74.0 |
82.5 |
114.3 |
149.2 |
96.8 |
84.1 |
165.1 |
28.6 |
44.5 |
16.4 |
16 |
|
58 |
76.2 |
82.6 |
114.3 |
149.2 |
96.8 |
84.1 |
165.1 |
28.6 |
44.5 |
16.4 |
16 |
|
60 |
79.4 |
85.7 |
114.3 |
149.2 |
96.8 |
84.1 |
165.1 |
28.6 |
44.5 |
16.4 |
16 |
|
63 |
85.8 |
92.1 |
127.0 |
160,3 |
109.5 |
96.8 |
177.8 |
31.8 |
47.7 |
19.6 |
16 |
|
65 |
88.9 |
95.3 |
127.0 |
160.3 |
109.5 |
96.8 |
177.8 |
31.8 |
47.7 |
19.6 |
16 |
|
68 |
92.1 |
98.4 |
127.0 |
160.3 |
109.5 |
96.8 |
177.8 |
31.8 |
47.7 |
19.6 |
16 |
|
70 |
92.1 |
98.4 |
127.0 |
160.3 |
109.5 |
96.8 |
177.8 |
31.8 |
47.7 |
19.6 |
16 |
|
75 |
98.5 |
108.0 |
142.9 |
173.0 |
125.4 |
108.0 |
190.5 |
31.8 |
47.7 |
19.6 |
16 |
|
80 |
101.6 |
111.1 |
142.9 |
173.0 |
125.4 |
108.0 |
190.5 |
31.8 |
47.7 |
19.6 |
16 |
|
85 |
108.0 |
117.5 |
155.6 |
182.5 |
135.0 |
117.5 |
203.2 |
31.8 |
47.7 |
19.6 |
20 |
|
90 |
114.3 |
127.0 |
171.5 |
195.2 |
150.8 |
127.0 |
215.9 |
31.8 |
47.7 |
19.6 |
20 |
|
95 |
117.5 |
130.2 |
171.5 |
195.2 |
150.8 |
127.0 |
215.9 |
31.8 |
47.7 |
19.6 |
20 |
|
100 |
123.9 |
139.7 |
188.9 |
207.9 |
168.3 |
136.5 |
228.6 |
31.8 |
47.7 |
19.6 |
20 |
|
105 |
130.1 |
149.2 |
189.0 |
208.0 |
168.3 |
136.5 |
228.6 |
31.8 |
47.7 |
19.6 |
20 |
|
110 |
136.5 |
158.8 |
198.4 |
220.6 |
177.8 |
146.1 |
241.3 |
31.8 |
47.7 |
19.6 |
20 |
|
115 |
142.9 |
168.3 |
211.1 |
230.2 |
186.6 |
155.6 |
254.0 |
31.8 |
47.7 |
19.6 |
22 |
|
120 |
142.9 |
168.3 |
211.1 |
230.2 |
186.6 |
155.6 |
254.0 |
31.8 |
47.7 |
19.6 |
22 |
|
125 |
149.2 |
168.3 |
211.1 |
230.2 |
186.6 |
155.6 |
254.0 |
31.8 |
47.7 |
19.6 |
22 |
