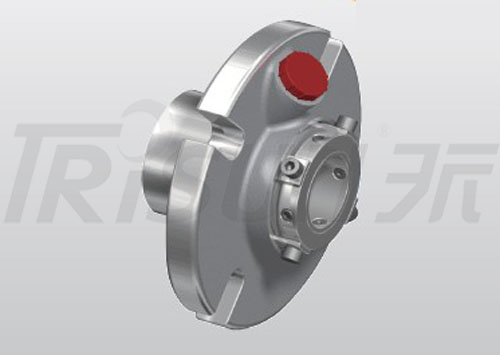

TSSC-A04 单/双端面集装式密封件
TSSC-A04 技术参数： 压力：2.3MPa 速率：23m/s 温度：-30℃～200℃ 动环(石墨/碳化硅/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(氟胶/AFLAS/Kalrez) 弹簧及其它金属...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数：
压力：≤2.3MPa
速率：≤23m/s
温度：-30℃～200℃
动环(石墨/碳化硅/碳化钨）
静环(碳化硅/碳化钨）
辅助密封(氟胶/AFLAS/Kalrez)
弹簧及其它金属配件（哈氏-C/DUPLEX/316）
|

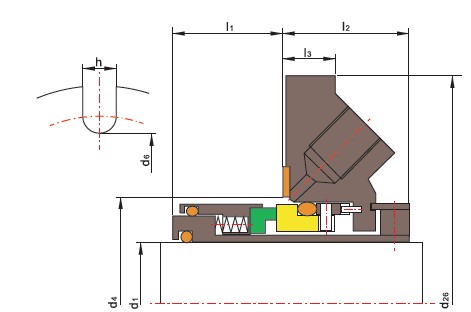

d1 |
d4 |
d6 |
d26 |
l1 |
l2 |
l3 |
h |
|
|
min |
max |
max |
||||||
|
1.000 |
1.625 |
1.937 |
2.187 |
4.125 |
1.055 |
1.354 |
0.492 |
0.562 |
|
1.125 |
1.75 |
2.062 |
2.312 |
4.250 |
1.055 |
1.354 |
0.492 |
0.562 |
|
1.250 |
1.875 |
2.187 |
2.437 |
4.375 |
1.055 |
1.354 |
0.492 |
0.562 |
|
1.375 |
2.000 |
2.312 |
2.625 |
4.375 |
1.055 |
1.354 |
0.492 |
0.562 |
|
1.500 |
2.250 |
2.500 |
2.875 |
5.000 |
1.090 |
1.393 |
0.644 |
0.562 |
|
1.625 |
2.375 |
2.500 |
2.875 |
5.000 |
1.090 |
1.393 |
0.644 |
0.562 |
|
1.750 |
2.500 |
2.625 |
3.000 |
5.250 |
1.090 |
1.393 |
0.644 |
0.562 |
|
1.875 |
2.625 |
3.000 |
3.312 |
5.500 |
1.090 |
1.393 |
0.644 |
0.562 |
|
2.000 |
2.750 |
3.000 |
3.312 |
5.500 |
1.150 |
1.413 |
0.644 |
0.562 |
|
2.125 |
2.875 |
3.312 |
3.687 |
5.750 |
1.150 |
1.413 |
0.644 |
0.687 |
|
2.250 |
3.000 |
3.312 |
3.687 |
5.750 |
1.150 |
1.413 |
0.644 |
0.687 |
|
2.375 |
3.125 |
3.562 |
3.937 |
6.000 |
1.150 |
1.413 |
0.644 |
0.687 |
|
2.500 |
3.375 |
3.687 |
4.187 |
6.250 |
1.199 |
1.413 |
0.644 |
0.687 |
|
2.625 |
3.500 |
3.750 |
4.187 |
6.250 |
1.199 |
1.413 |
0.644 |
0.687 |
|
2.750 |
3.625 |
3.875 |
4.187 |
6.250 |
1.199 |
1.413 |
0.644 |
0.687 |
|
d1 |
d4 |
d6 |
d26 |
l1 |
l2 |
l3 |
h |
|
|
min |
max |
max |
||||||
|
24 |
40.0 |
46.0 |
52.4 |
101.6 |
26.8 |
34.4 |
12.5 |
14.3 |
|
25 |
41.0 |
49.2 |
55.6 |
104.8 |
26.8 |
34.4 |
12.5 |
14.3 |
|
28 |
44.0 |
52.4 |
58.7 |
108.0 |
26.8 |
34.4 |
12.5 |
14.3 |
|
30 |
46.0 |
55.6 |
61.9 |
111.0 |
26.8 |
34.4 |
12.5 |
14.3 |
|
32 |
48.0 |
55.6 |
61.9 |
111.0 |
26.8 |
34.4 |
12.5 |
14.3 |
|
33 |
49.0 |
55.6 |
61.9 |
111.0 |
26.8 |
34.4 |
12.5 |
14.3 |
|
35 |
50.8 |
58.7 |
66.7 |
111.0 |
26.8 |
34.4 |
12.5 |
14.3 |
|
38 |
57.2 |
63.5 |
73.0 |
127.0 |
27.7 |
35.4 |
16.4 |
14.3 |
|
40 |
57.2 |
63.5 |
73.0 |
127.0 |
27.7 |
35.4 |
16.4 |
14.3 |
|
43 |
60.3 |
63.5 |
73.0 |
127.0 |
27.7 |
35.4 |
16.4 |
14.3 |
|
45 |
63.5 |
66.7 |
76.2 |
133.4 |
27.7 |
35.4 |
16.4 |
14.3 |
|
48 |
66.7 |
76.2 |
84.1 |
139.7 |
27.7 |
35.4 |
16.4 |
14.3 |
|
50 |
66.7 |
76.2 |
84.1 |
139.7 |
27.7 |
35.4 |
16.4 |
14.3 |
|
53 |
69.9 |
76.2 |
84.1 |
139.7 |
29.2 |
35.9 |
16.4 |
14.3 |
|
55 |
73.0 |
84.1 |
93.7 |
146.0 |
29.2 |
35.9 |
16.4 |
17.5 |
|
58 |
76.2 |
84.1 |
93.7 |
146.0 |
29.2 |
35.9 |
16.4 |
17.5 |
|
60 |
79.4 |
90.5 |
100 |
152.4 |
29.2 |
35.9 |
16.4 |
17.5 |
|
63 |
85.7 |
93.7 |
106.4 |
158.8 |
30.5 |
35.9 |
16.4 |
17.5 |
|
65 |
88.9 |
95.3 |
106.4 |
158.8 |
30.5 |
35.9 |
16.4 |
17.5 |
|
70 |
92.1 |
98.4 |
106.4 |
158.8 |
30.5 |
35.9 |
16.4 |
17.5 |
