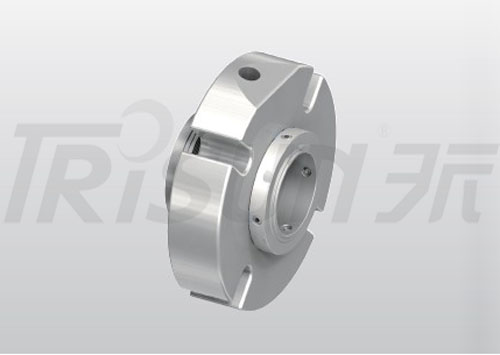

TSMB-J13 金属波纹管密封件
TSMB-J13 技术参数： 压力：2MPa 速率：25m/s 温度：-30℃～+200℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/石墨/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙烯）...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
TSMB-J13
技术参数：
压力：≤2MPa
速率：≤25m/s
温度：-30℃～+200℃
动环(碳化硅/石墨/碳化钨）
静环(碳化硅/石墨/碳化钨）
辅助密封(氟胶/包覆圈/聚四氟乙烯）
金属波纹管(SUS316L/AM350/Inconel718/钛材/哈氏C/合金20)
其它部件(不锈钢/钛材/哈氏-C)
|

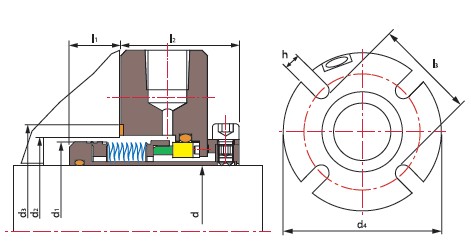

d |
d1 |
d2 |
d3 |
l1 |
l2 |
l3 |
h |
d4 |
|
1.125 |
1.687 |
1.937 |
2.375 |
0.687 |
1.687 |
2.437 |
0.562 |
4.375 |
|
1.125 |
1.687 |
1.937 |
3.250 |
0.687 |
1.687 |
3.312 |
0.437 |
4.500 |
|
1.375 |
1.937 |
2.062 |
2.375 |
0.687 |
1.562 |
2.437 |
0.562 |
4.375 |
|
1.375 |
1.937 |
2.812 |
3.250 |
0.687 |
1.562 |
3.437 |
0.500 |
5.250 |
|
1.500 |
2.187 |
2.937 |
2.750 |
0.750 |
1.687 |
2.812 |
0.562 |
5.125 |
|
1.625 |
2.312 |
2.437 |
2.812 |
0.750 |
1.687 |
2.875 |
0.562 |
5.250 |
|
1.750 |
2.437 |
2.562 |
3.125 |
0.750 |
1.687 |
3.187 |
0.562 |
5.250 |
|
1.750 |
2.437 |
3.437 |
4.250 |
0.750 |
1.687 |
4.562 |
0.562 |
6.500 |
|
1.875 |
2.562 |
2.687 |
3.250 |
0.750 |
1.687 |
3.312 |
0.562 |
5.375 |
|
1.875 |
2.562 |
3.562 |
4.250 |
0.750 |
1.687 |
4.437 |
0.562 |
6.500 |
|
2.000 |
2.687 |
2.812 |
3.250 |
0.750 |
1.750 |
3.312 |
0.687 |
5.500 |
|
2.125 |
2.812 |
2.937 |
3.500 |
0.875 |
1.687 |
3.562 |
0.687 |
5.437 |
|
2.500 |
3.312 |
3.437 |
4.250 |
1.000 |
1.687 |
4.312 |
0.812 |
6.250 |
|
2.500 |
3.312 |
4.375 |
5.500 |
1.000 |
1.687 |
5.625 |
0.750 |
8.000 |
|
2.625 |
3.437 |
3.562 |
4.375 |
1.187 |
1.625 |
4.437 |
0.562 |
6.500 |
|
2.625 |
3.437 |
4.375 |
5.375 |
1.187 |
1.625 |
5.437 |
0.565 |
7.000 |
|
2.750 |
3.625 |
3.750 |
4.500 |
1.062 |
1.625 |
4.562 |
0.750 |
7.000 |
|
3.000 |
3.875 |
4.000 |
4.812 |
1.125 |
1.656 |
4.875 |
0.812 |
7.750 |
|
3.250 |
4.125 |
4.250 |
4.937 |
1.125 |
1.656 |
5.000 |
0.812 |
7.500 |
|
3.500 |
4.375 |
4.687 |
5.625 |
1.250 |
1.656 |
5.687 |
0.812 |
8.500 |
|
d |
d1 |
d2 |
d3 |
l1 |
l2 |
l3 |
h |
d4 |
|
28 |
42.8 |
49.2 |
60.3 |
17.4 |
42.9 |
61.9 |
14.3 |
111.1 |
|
33 |
49.2 |
52.4 |
60.3 |
17.4 |
39.7 |
61.9 |
14.3 |
106.0 |
|
35 |
49.2 |
52.4 |
60.3 |
17.4 |
39.7 |
61.9 |
14.3 |
106.0 |
|
38 |
55.5 |
58.7 |
69.8 |
19.0 |
42.9 |
71.5 |
14.3 |
130.2 |
|
40 |
58.7 |
61.9 |
71.4 |
19.1 |
42.8 |
73.0 |
14.3 |
133.4 |
|
43 |
61.9 |
65.7 |
79.4 |
19.1 |
42.9 |
81.0 |
14.3 |
133.4 |
|
45 |
61.9 |
65.1 |
79.4 |
19.1 |
42.9 |
81.0 |
14.3 |
133.4 |
|
48 |
65.1 |
68.3 |
82.6 |
19.0 |
44.5 |
84.2 |
17.4 |
139.7 |
|
50 |
68.2 |
71.4 |
82.6 |
19.0 |
44.5 |
84.2 |
17.4 |
138.0 |
|
53 |
71.4 |
74.6 |
88.9 |
22.2 |
42.9 |
90.5 |
17.4 |
138.0 |
|
55 |
71.4 |
74.6 |
88.9 |
22.2 |
42.9 |
90.5 |
17.4 |
138.0 |
|
60 |
80.9 |
84.1 |
96.8 |
25.4 |
41.3 |
98.4 |
17.4 |
158.8 |
|
65 |
87.3 |
90.5 |
109.5 |
30.2 |
41.2 |
111.1 |
17.4 |
177.8 |
|
70 |
92.1 |
95.2 |
114.3 |
27.0 |
41.2 |
115.9 |
17.5 |
190.0 |
|
75 |
98.4 |
101.6 |
122.2 |
28.5 |
42.1 |
123.8 |
20.6 |
196.9 |
|
80 |
104.8 |
108.0 |
125.4 |
28.5 |
42.1 |
127.0 |
19.1 |
190.0 |
|
85 |
108.0 |
111.1 |
125.4 |
31.7 |
42.1 |
127.0 |
19.1 |
203.2 |
|
100 |
128.6 |
131.8 |
154.0 |
34.9 |
42.1 |
155.6 |
22.2 |
228.6 |
