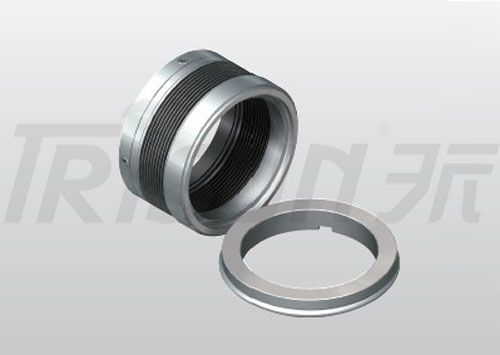

TSMB-B01(金属波纹管密封件 替换伯格曼 MFL85N(F) )
TSMB-B01 技术参数： 压力：2.5MPa 速率：20m/s 温度：-40℃～+220℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/石墨/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙烯）...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
TSMB-B01
技术参数：
压力：≤2.5MPa
速率：≤20m/s
温度：-40℃～+220℃
动环(碳化硅/石墨/碳化钨）
静环(碳化硅/石墨/碳化钨）
辅助密封(氟胶/包覆圈/聚四氟乙烯）
金属波纹管(SUS316L/AM350/Inconel718/钛材/哈氏C/合金20)
其它部件(不锈钢/钛材/哈氏-C)
|

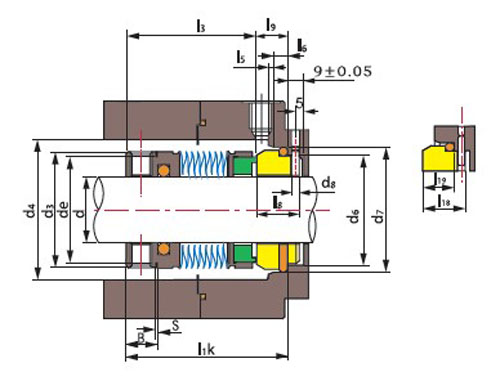

d |
d3 |
d6 |
d7 |
d8 |
de |
d4 |
l1k |
l3 |
l5 |
l6 |
l8 |
l9 |
l18 |
l19 |
S |
B |
|
16 |
30.0 |
23 |
27 |
3 |
25.0 |
38 |
42.5 |
32.5 |
1.5 |
4 |
17.5 |
10.0 |
\ |
\ |
1.6 |
9.0 |
|
18 |
32.0 |
27 |
33 |
3 |
28.0 |
39 |
37.5 |
30.5 |
2.0 |
5 |
14.0 |
11.5 |
15.0 |
7.0 |
1.6 |
10.0 |
|
20 |
33.5 |
29 |
35 |
3 |
29.5 |
41 |
37.5 |
30.5 |
2.0 |
5 |
14.0 |
11.5 |
15.0 |
7.0 |
1.6 |
10.0 |
|
22 |
36.5 |
31 |
37 |
3 |
32.0 |
44 |
37.5 |
30.5 |
2.0 |
5 |
14.0 |
11.5 |
15.0 |
7.0 |
1.6 |
10.0 |
|
24 |
39.0 |
33 |
39 |
3 |
34.5 |
47 |
40.0 |
28.5 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
8.2 |
|
25 |
39.6 |
34 |
40 |
3 |
35.5 |
48 |
40.0 |
28.5 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
8.5 |
|
28 |
42.8 |
37 |
43 |
3 |
38.5 |
51 |
42.5 |
31.0 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
9.0 |
|
30 |
45.0 |
39 |
45 |
3 |
40.5 |
53 |
42.5 |
31.0 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
8.5 |
|
32 |
46.0 |
42 |
48 |
3 |
42.0 |
55 |
42.5 |
31.0 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
9.2 |
|
33 |
48.0 |
42 |
48 |
3 |
43.0 |
56 |
42.5 |
31.0 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
9.2 |
|
35 |
49.2 |
44 |
50 |
3 |
45.5 |
58 |
42.5 |
31.0 |
2.0 |
5 |
19.5 |
11.5 |
15.0 |
7.0 |
1.6 |
9.5 |
|
38 |
52.3 |
49 |
56 |
4 |
48.0 |
61 |
45.0 |
31.0 |
2.0 |
6 |
22.0 |
14.0 |
16.0 |
8.0 |
1.6 |
9.2 |
|
40 |
55.5 |
51 |
58 |
4 |
50.0 |
64 |
45.0 |
31.0 |
2.0 |
6 |
22.0 |
14.0 |
16.0 |
8.0 |
1.6 |
9.2 |
|
43 |
57.5 |
54 |
61 |
4 |
53.0 |
67 |
45.0 |
31.0 |
2.0 |
6 |
22.0 |
14.0 |
16.0 |
8.0 |
1.6 |
9.2 |
|
45 |
58.7 |
56 |
63 |
4 |
55.0 |
69 |
45.0 |
31.0 |
2.0 |
6 |
22.0 |
14.0 |
16.0 |
8.0 |
1.6 |
9.5 |
|
48 |
61.9 |
59 |
66 |
4 |
58.0 |
72 |
45.0 |
31.0 |
2.0 |
6 |
22.0 |
14.0 |
16.0 |
8.0 |
1.6 |
9.2 |
|
50 |
65.0 |
62 |
70 |
4 |
60.5 |
74 |
47.5 |
32.5 |
2.5 |
6 |
23.0 |
15.0 |
17.0 |
9.5 |
1.6 |
10.5 |
|
53 |
68.2 |
65 |
73 |
4 |
64.0 |
77 |
47.5 |
32.5 |
2.5 |
6 |
23.0 |
15.0 |
17.0 |
9.5 |
1.6 |
10.5 |
|
55 |
70.0 |
67 |
75 |
4 |
65.5 |
80 |
47.5 |
32.5 |
2.5 |
6 |
23.0 |
15.0 |
17.0 |
9.5 |
1.6 |
10.0 |
|
58 |
71.7 |
70 |
78 |
4 |
67.0 |
83 |
52.5 |
37.5 |
2.5 |
6 |
23.0 |
15.0 |
18.0 |
10.5 |
3.0 |
14.0 |
|
60 |
74.6 |
72 |
80 |
4 |
69.5 |
85 |
52.5 |
37.5 |
2.5 |
6 |
23.0 |
15.0 |
18.0 |
10.5 |
3.0 |
14.0 |
|
63 |
79.0 |
75 |
83 |
4 |
72.5 |
88 |
52.5 |
37.5 |
2.5 |
6 |
23.0 |
15.0 |
18.0 |
10.5 |
3.0 |
14.0 |
|
65 |
84.1 |
77 |
85 |
4 |
78.0 |
95 |
52.5 |
37.5 |
2.5 |
6 |
23.0 |
15.0 |
18.0 |
10.5 |
3.0 |
14.0 |
|
68 |
87.3 |
81 |
90 |
4 |
82.0 |
96 |
52.5 |
34.5 |
2.5 |
7 |
26.0 |
18.0 |
18.5 |
11.0 |
1.6 |
10.0 |
|
70 |
87.3 |
83 |
92 |
4 |
81.0 |
96 |
60.0 |
42.0 |
2.5 |
7 |
26.0 |
18.0 |
19.0 |
11.5 |
3.0 |
17.0 |
|
75 |
95.0 |
88 |
97 |
4 |
87.0 |
104 |
60.0 |
42.0 |
2.5 |
7 |
26.0 |
18.0 |
19.0 |
11.5 |
3.0 |
16.0 |
|
80 |
98.4 |
95 |
105 |
4 |
91.0 |
109 |
60.0 |
41.8 |
3.0 |
7 |
26.2 |
18.2 |
18.2 |
11.5 |
3.0 |
16.0 |
|
85 |
104.7 |
100 |
110 |
4 |
96.0 |
114 |
60.0 |
41.8 |
3.0 |
7 |
26.2 |
18.2 |
18.2 |
11.5 |
3.0 |
16.0 |
|
90 |
111.0 |
105 |
115 |
4 |
103.0 |
119 |
65.0 |
46.8 |
3.0 |
7 |
26.2 |
18.2 |
18.2 |
13.0 |
3.0 |
21.0 |
|
95 |
114.0 |
110 |
120 |
4 |
106.0 |
124 |
65.0 |
47.8 |
3.0 |
7 |
25.2 |
17.2 |
20.5 |
13.0 |
3.0 |
21.0 |
|
100 |
117.4 |
115 |
125 |
4 |
111.0 |
129 |
65.0 |
47.8 |
3.0 |
7 |
25.2 |
17.2 |
20.5 |
13,0 |
3.0 |
20.0 |
